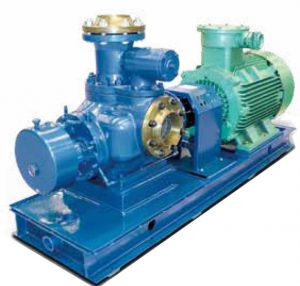

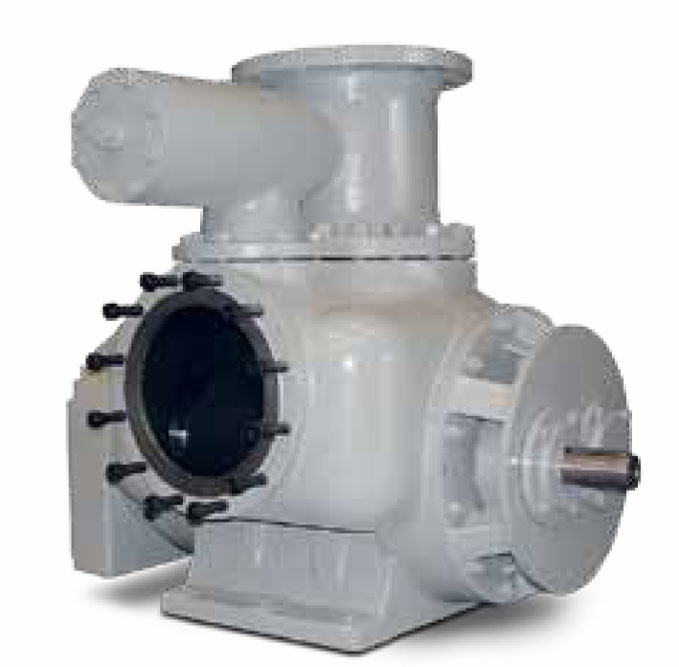

WTG Series Twin Screw with Timing Gears

RedScrew’s twin screw pumps are offered with a double suction design configuration. Twin Screw pumps with timing gear transmissions are perfectly suited for transferring non lubricant fluids, or even abrasive mediums. WTG pump series offer no metal contact between the hydraulic components and automatic axial balancing. Redscrew WTG Series pumps can be applied in a variety of different operating conditions and fluids that includes but is not limited too; corrosive and non-corrosive, low or high viscosities; clean or abrasive.

Applications Petroleum Petrochemical Refineries Chemical Storage and transportation Shipping Oil terminals Food & beverage Lubricating oil
Features and Benefits: Low noise Overload protection Nearly pulsation-free Increased reliability Direct drive No fluid agitation No emulsified shear Suitable for a wide range of viscosity

Technical Data:

• Over 80 sizes

Performance Data:

• Flow rate: 1 m3/hr (5 gpm) thru 2200 m3/hr (10,000 gpm)
• Max. differential pressure: 60 bar (900 psi)
• Max. temperature: 350° C (650 °F)
