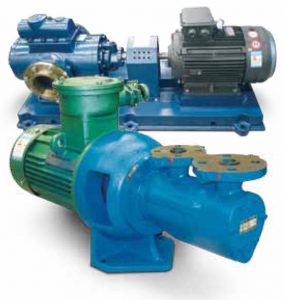

Triple Series Screw Pumps

Triple screw pumps adopt a cycloid profile of meshing principals at the screw profile. The power spindle is driven by a motor and the idler spindles are driven by fluid hydraulic power in an intermeshing screw groove. Hydraulic force on the spindle is balanced by hydraulic load on the balanced piston.

Applications Fuel oil delivery Hydraulic units Machineries Shipping industry Petrochemical Iron and steel Power
Features and Benefits: Low noise Low maintenance cost Reliable Strong self-priming capacity No leakage Environmentally friendly
Technical Data: Four models to fit your application
Performance Data: Flow rate: 2 lpm (1 gpm) thru 5300 lpm (1,400 gpm) Max. differential pressure: 160 bar (2,250 psi) Max. temperature: 280° C (530 °F)

Certifications & Associations:
