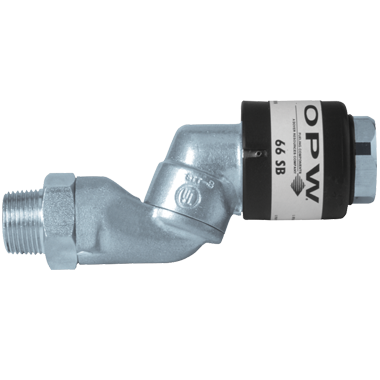

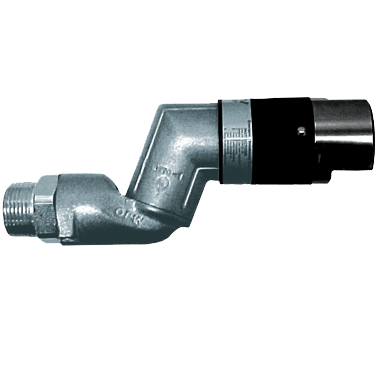

OPW 66SB Swivel Breakaway

The OPW 66SB Swivel Breakaway is intended for easy installation at the nozzle inlet. The compact, lightweight design incorporates a 360° swivel rotation at both the male end and middle joint, with a simple and easily-reconnectable breakaway on the opposite end.

OPW 66SB Swivel Breakaway_2018


Features & Benefits

  • UL and ULC listed for use in gasoline, diesel and up to 10% ethanol blends. See specific listings.
  • Pull Force – the 66SB will break away with a pull force of no more than 350 lbs.
  • Easily Reconnected at Waist Height – after relieving line pressure, simply push coupling halves together until latched. Reconnection force is approximately 15 lbs.
  • Protected Coupling and Poppet – the breakaway’s poppet and sealing surface are protected from impact during separation by a plastic sleeve.
  • Reduces Connections – the single-unit design replaces the standard swivel, breakaway and whip hose, eliminating possible leak points.
  • Double O-Ring Seal – both swivel joints are protected by a double O-Ring design.

Design working pressure

  • 50 psi (3.45 bar) maximum pressure.

Listings & Certifications

Materials

  • Body: Aluminum
  • Sleeve: Nylon, HDPE
  • Seals: Viton®
  • Spring: Stainless steel
  • Poppet: Aluminum
  • Packed: 20 per case


Ordering Specifications

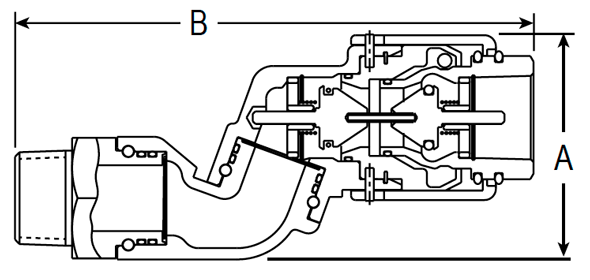

Dimensions

66SB Instruction Sheet Order Number: F-69
