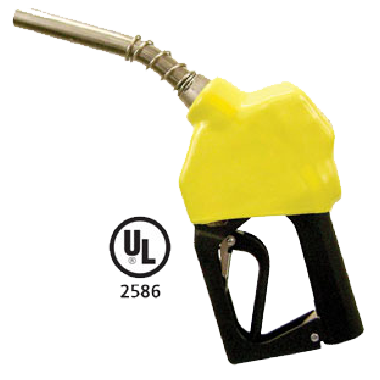

The OPW 11BP Series nozzles are designed and rigorously tested for use in today’s alternative fuels. It’s the first nozzle of its kind to be UL-Listed for use in Ethanol-blended fuels up to 85%.

OPW 11BP Series Ethanol Nozzles_2018

Features & Benefits

Safe for Use

• UL-Listed for up to 85% Ethanol.
• Prevents gasoline spills in prepay or card-lock systems utilizing OPW’s unique No Pressure – No Flow Device. It cannot be opened until the pumping system is pressurized, and closes automatically when the pressure is removed.
• Prevents consumer from jamming the nozzle in an open position – Blocker on lever guard.
• FlowLock™ allows nozzle to shut-off when falling out of a vehicle, and tipped up, limiting spillage and unsafe conditions.

Durable & Long-Lasting Design

• Cycle-tested and proven to last longer than 1 million cycles – Better than any other nozzle available on the market today*
• Durable lever guard that won’t scratch your customers’ vehicles – Made from Duratuff®.
• New hold open clip spring lasts longer then previous designs

Appealing to Customers

• Easy to use – Utilizing Accu-Stop® to-the-penny Flow Control Technology.
• Attractive 2-Piece Newgard™ Hand Insulator is the most comfortable nozzle in the industry to use.
• Convenient – One-finger hold-open clip that is easy to set the flow rate (not on all models)

Design working pressure

• 50 psi (3.45 bar) maximum pressure.

* OPW internal lab testing results as of August 2010.

Materials

Listings and Certifications

UL Listed for up to 85% Ethanol

New Ordering Specifications

• E-85: Nozzles compatible up to E85 (85% Ethanol)

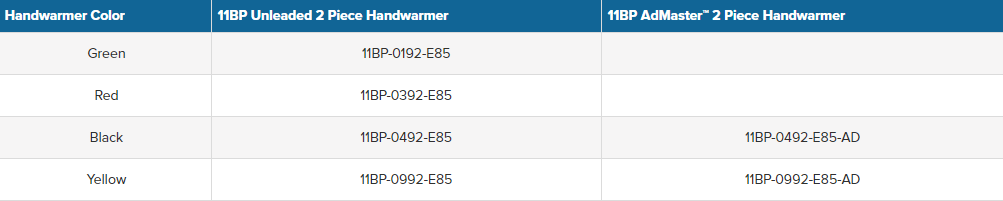

Hand Insulator Colors

• 241TPS Ordering Specifications

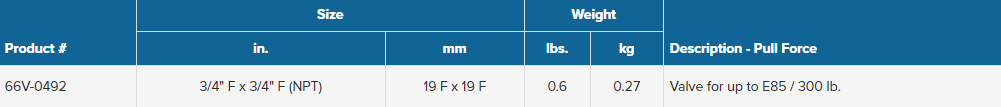

• 66V Ordering Specifications

66V Series 3/4″ Instruction Sheet Order Number: H10993PA

Replacement Parts

Also see OPW 6 NEWGARD™ 2-Piece Hand Insulators
