Large Mouth Polyethylene

APT™ brand large mouth polyethylene dispenser sumps feature a two-piece modular design and large sump opening to provide easy installation and ample space for under dispenser containment. With a variety of sump lengths, two depth options, an assortment of top frame options, and field height adjustability, there is a solution to match virtually any application and provide complete compatibility with the industry’s most popular dispenser models.


Highlights

  • The ribbed riser can be cut down in 3″ increments in the field to adjust sump heigh and achieve proper pipe slopes with respect to grade.
  • Available in medium (28″) and deep(43″) burial depths to properly maintain slope.
  • 22″ wide by 24″, 36″, or 48″ long opening on base gives plenty of room for boot, fitting and monitor installation.
  • The sump base widens to a spacious 26″ where entry boots and pipe connections are made.
  • Corrosion-resistant powder coated steel top frames provide durability and extended service life.
  • Stabilizer bar kits (SBKs) mount into welded strut channels for shear valve mounting (one SBK is required for each shear valve and must be purchased separately).

Specs:

Approvals/Certifications
  • ULc listed.
  • Florida EQ-423 approved.

Order Info:

Large Mouth Polyethylene Dispenser Sumps

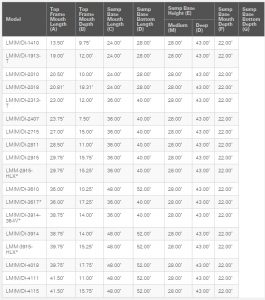

Use the drawing diagram and the dimensions below to identify the appropriate dispenser sump for your application or use the Large Mouth Dispenser Sump Directory found on the following pages.

Note: For “M/D” in part number use “M” for medium or “D” for deep when ordering.
*Conduitless top frame.

Stabilizer Bar Kits

One SBK is required for each shear valve and must be purchased separately. Select the appropriate SBK with the compatibility chart below.



Grommets for Conduitelss Sumps



Large Mouth Polyethylene Dispenser Sump Base Only

Use the drawing diagram and the dimensions below to identify the appropriate dispenser sump base for your application.

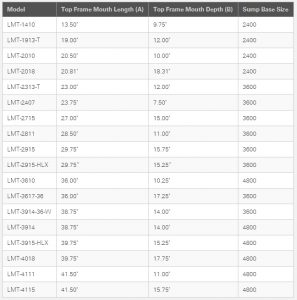

Large Mouth Polyethylene Dispenser Top Frame Only

Use the drawing diagram and the dimensions below to identify the appropriate top frame for your application.
