Compression Load cell

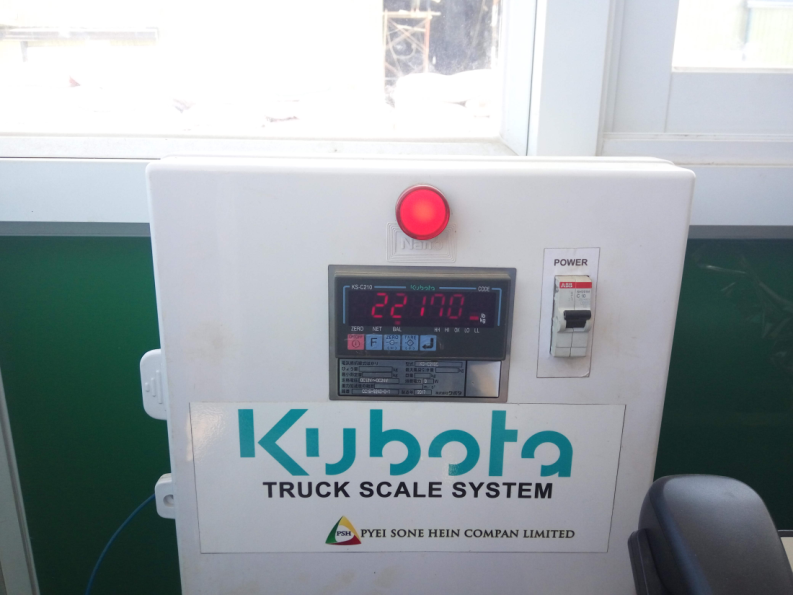

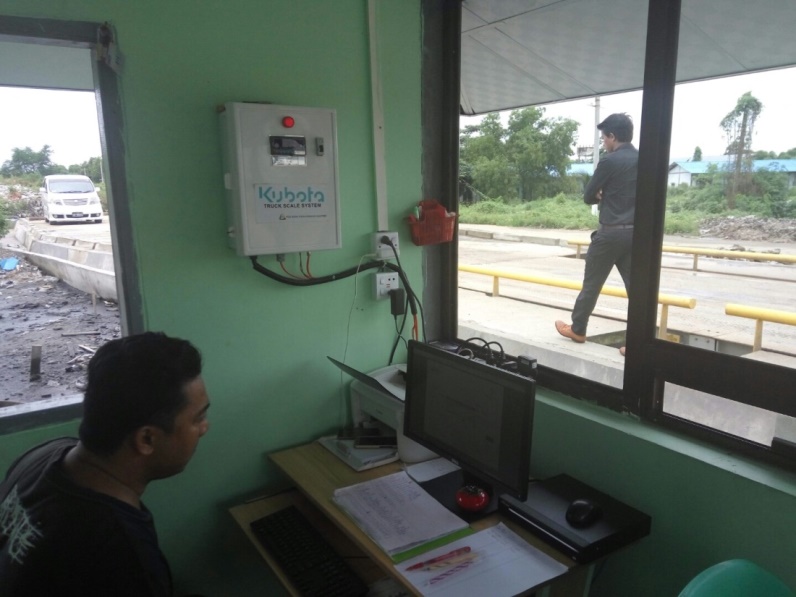

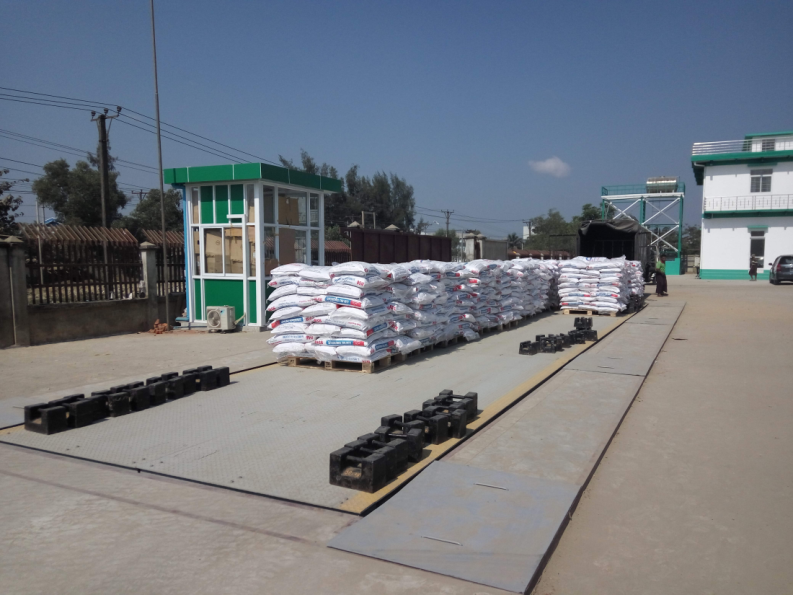

Kubota Digital Truck Scale System

Our digital weighing scale business unit is distributing Kubota Digital Truck Scale System to Myanmar market. Kubota’s origin lies in “weighing and measuring.” In 1890, the company started from producing cast iron weights for scales.

In 1924, manufacturing scales was expanded business to include mechanical platform scales. Since then, the “weighing and measuring” business has been passed on, evolving for 90 plus years. Kubota always forefront of technological development to support diverse industrial weighing needs. Kubota will continue to strive to provide innovative technologies for weigh and control that exceed customer expectations.


Digital Load Cell Product Overview

  • Kubota D-LC truck scale, we will propose the best system in every industry and application.
  • Integrated production from digital load cell to the indicator. Also to meet the needs of the overload prevention.

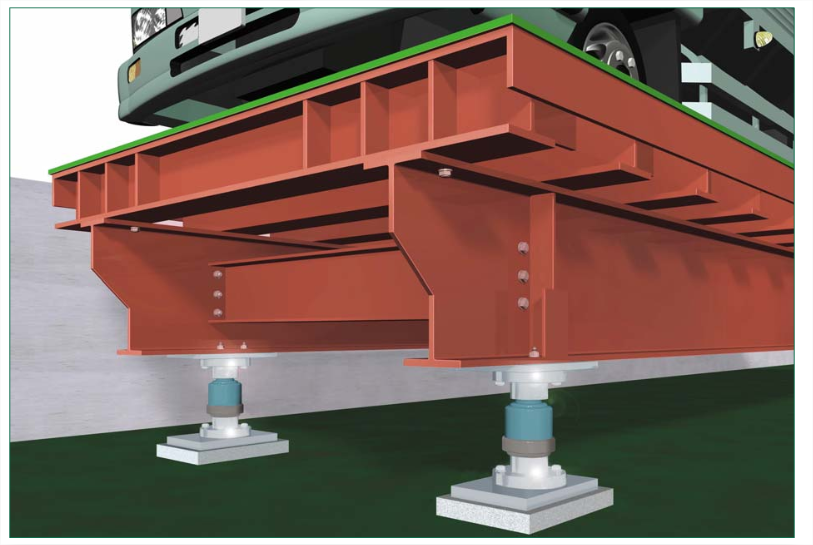

Compression type digital load cell unit LU-AD-SR Series

Features

  • Truck scale, digital load cell for the hopper scale.
  • Ideal for multi-use
  • Output calibrated
  • Made of SS
  • Dustproof and waterproof performance: IP68
  • Anti-rotation mechanism
  • Load cell cable: connector connection
  • Maximum capacity 25t / 40t
  • Accuracy Class C3/C4/C5/C6

Advantages

  • High Accuracy 1/6000
  • Direct Data output to indicators by RS485 Digital Signal
  • Low profile and light weight design
  • Easy installation and adjustment
  • Each Digital Load Cell has an ID number and it can be recognized by the indicator and can check the conditions of each Digital load cell diagnostic.
  • Water proof connector IP 68
  • Correction resistance material and design

Compression Load cell

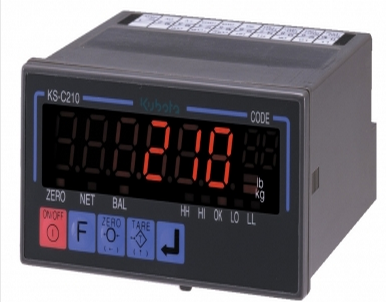

The KS-C210 Series is a system controller (indicator) specifically designed to control Kubota Digital Load Cell (D-LC) that can be widely used for various weighing systems such as weighbridge and platform scales.

Features

  • Compact Size
  • Up to 8 Digital can be controlled
  • The unit can operate in various modes- single mode (Single Load Cell), multi-mode (Multi Load Cell) and master satellite mode (Multi Load Cell and indicate individual mass)
  • Digital Calibration – Zero adjustment and span adjustment can be performed through keys on front panel
  • Two types of serial communications through RS 485 and RS 232 interface
  • Supporting diversified need through function setting. Functions necessary to control weighing can be set by using keys on the front panel
  • Various Options – Standard specification : KS-C210-A, BCD output specification : KS-C210-BD/BT/BC, 4-20 mA output specification : KS-C210-C

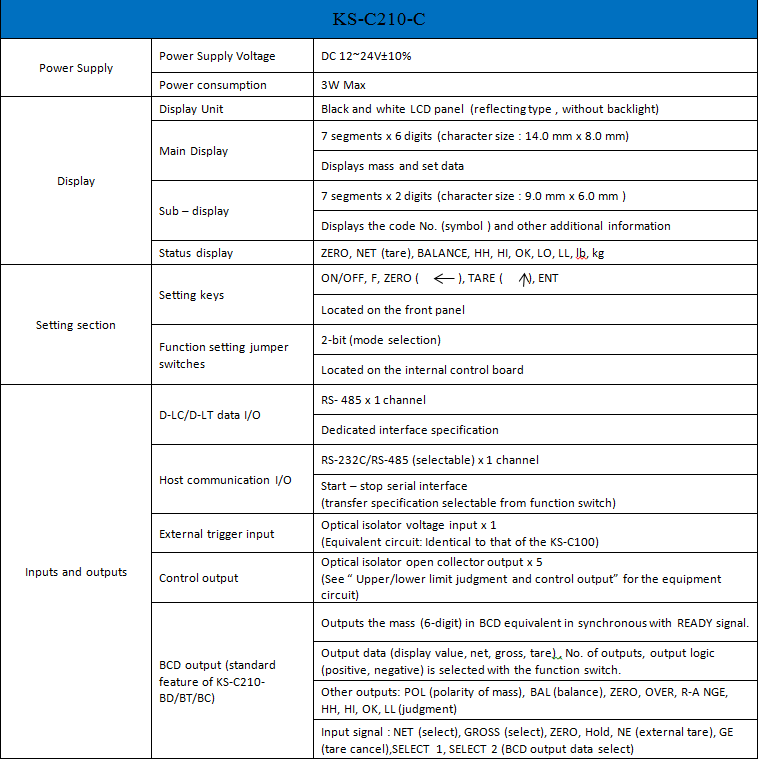

Specification
