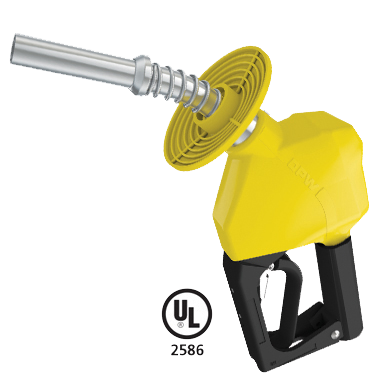

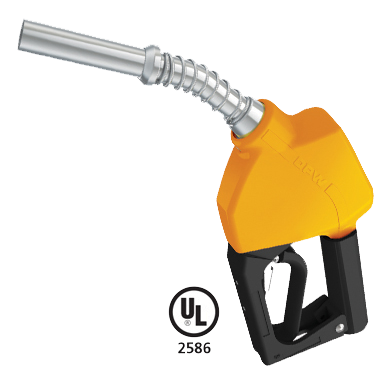

11A® and 11B® Automatic Nozzles

The OPW 11® Series automatic nozzles are OPW’s premium conventional nozzles for safe retail and commercial petroleum filling. The OPW 11® Series is the most trusted conventional nozzle in the world for full service use. The OPW 11B® Series is designed for use in retail and commercial filling applications including prepay, self and full-service, credit/debit card readers or card-lock systems to help prevent gasoline spills. The OPW 11B® will not open until the pumping system is pressurized, and closes automatically when the pressure is removed.


Features & Benefits



Safe for Use

  • UL- and ULC-Listed for use in gasoline, diesel, and up to 10% ethanol blends. See specific listings.
  • Prevents gasoline spills in prepay or card-lock systems utilizing OPW’s unique No Pressure – No Flow Device. The nozzle cannot be opened until the pumping system is pressurized, and closes automatically when the pressure is removed. (11B Series Only)
  • Prevents consumer from jamming the nozzle in an open position – Blocker on lever guard.
  • FlowLock™ allows nozzle to shut-off when falling out of a vehicle, and tipped up limiting spillage and unsafe conditions.

Durable & Long-Lasting Design

  • Cycle-tested and proven to last longer than 1 million cycles – Better than any other nozzle available on the market today*
  • Durable lever guard that won’t scratch your customers’ vehicles – Made from Duratuff®.
  • New hold open clip spring lasts longer than previous designs

Appealing to Customers

  • Easy to use – Utilizing Accu-Stop® to-the-penny Flow Control Technology.
  • Attractive 2-Piece Newgard™ Hand Insulator is the most comfortable nozzle in the industry to use.
  • Convenient – One-fingerhold-open clip that is easy to set the flowrate (not on all models)

Design working pressure

  • 50 PSI (3.45 bar) maximum pressure.

* OPW internal lab testing results as of August 2010.

Materials

  • Body: aluminum
  • Lever & Lever Guard: Duratuff®
  • Packing: Graphite with Teflon®
  • Disc: Viton®
  • Spout: aluminum
  • Inlet Size: 3/4″ NPT
  • Weight: 2.73 lbs. each, 43.1 lbs./case of 15, 1.25 kg each, 19.9 kg/case of 15

Performance

Listings and Certifications

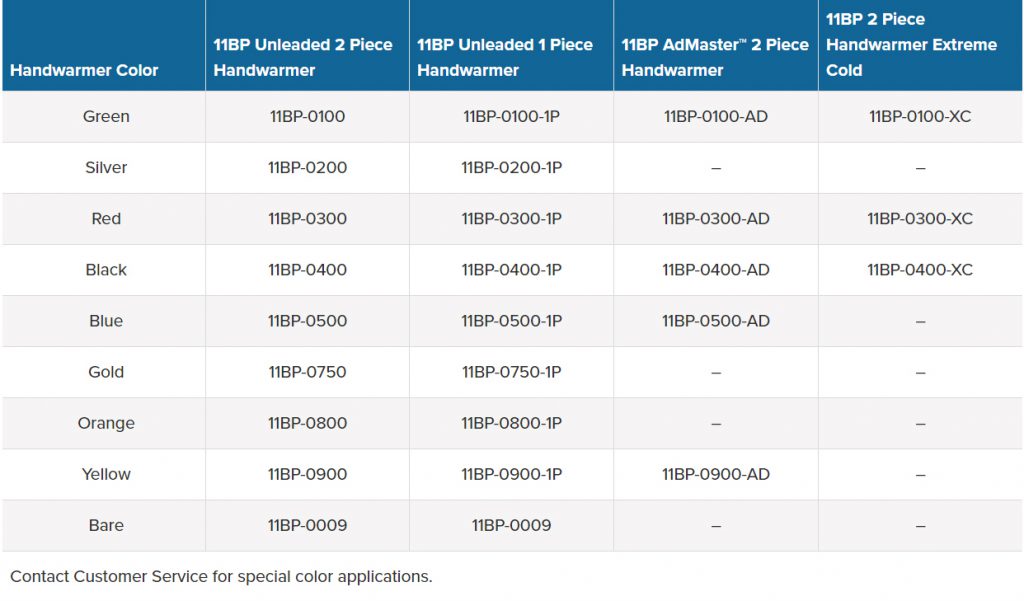

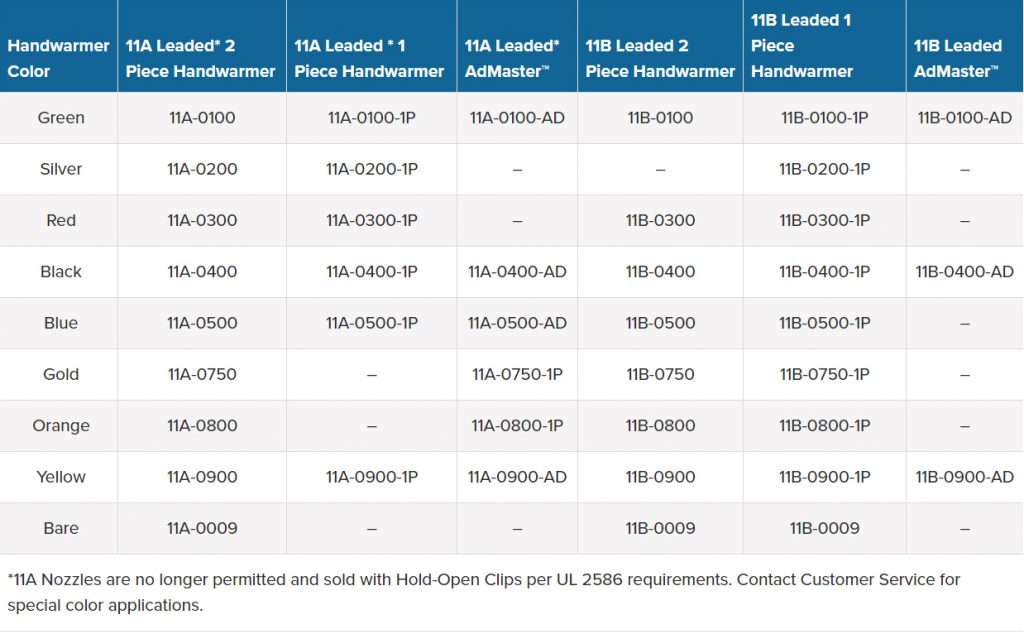

Ordering Specification



Alternate Fuel Ordering Specifications

  • E-10: Automatic Nozzles with Hold-Open Devices compatible up to E10 (10% Ethanol)

  • E-10: Automatic Nozzles without Hold-Open Devices compatible up to E10 (10% Ethanol)

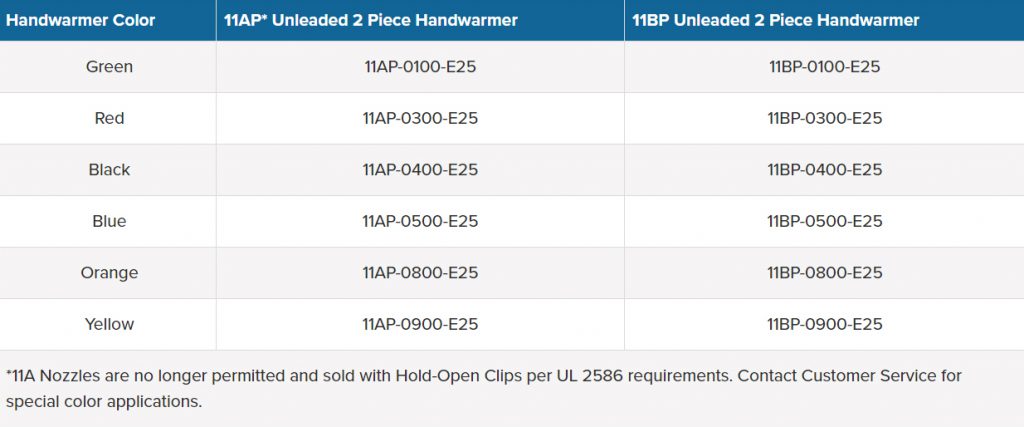

  • E-25: Nozzles compatible up to E25 (25% Ethanol)

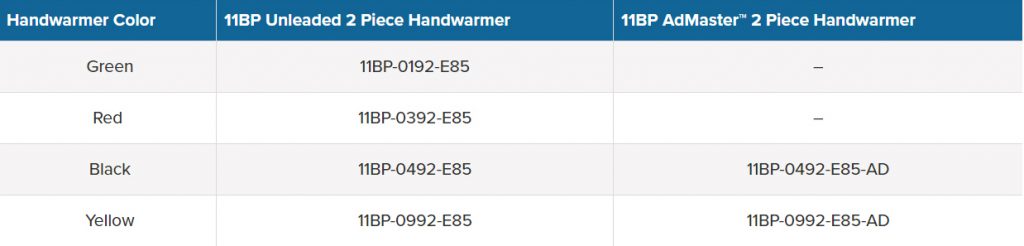

  • E-85: Nozzles compatible up to E85 (85% Ethanol)

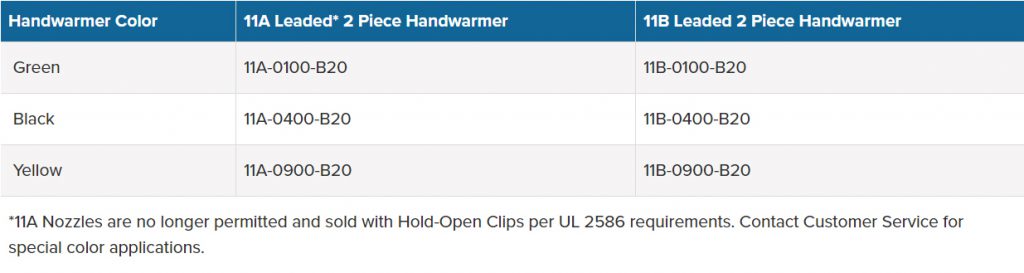

  • B-5: Nozzles compatible up to B5 (5% Biodiesel), Fuel Oil and Kerosene

  • B-20: Nozzles compatible up to B20 (20% Biodiesel)

New Two-Piece Hand Insulator Color Options

Custom Colors

–  With minimum quantities. Contact OPW Customer Service.

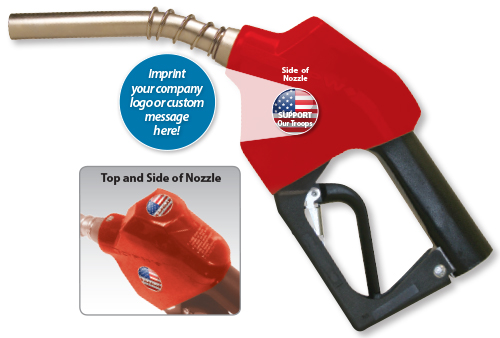

Customize and Colorize

–  Imprint your company logo or custom message to any color hand insulator

OPW can help you enhance your brand image, drive traffic into your store, and deliver important messages to your customers with its new Enhanced Nozzle Program.

Now you can imprint company names, logos and/or special promotional messages on to your nozzles!

Differentiate your store from all others. Choose from a wide array of standard hand insulator colors or create your own custom color hand insulator.

We Offer You The Convenience of Choice.

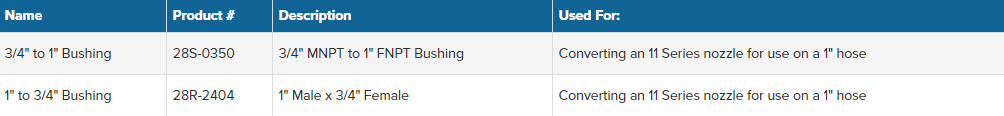

Accessories

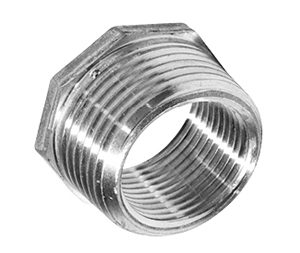

28R-2404 Bushing Adaptor

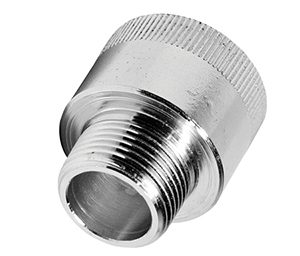

28S-0350 Bushing Adaptor

Replacement Parts

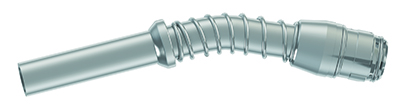

OPW 5BS and 5BBS Leaded, Diesel, Kerosene Spout

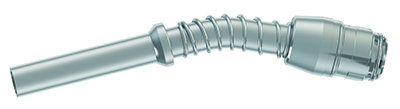

OPW 5BBPS and 5BPS Unleaded Spout


Notes & Warnings



Warning

Do not use OPW 11A® nozzles with a hold-open device on pre-pay self-service installations. Use the OPW 11B® or the 11A® without a hold-open device. Failure to comply is a violation of NFPA Code 30A, and may create a hazardous condition. Use of foreign objects to hold open automatic nozzles could result in shut-off failure and personal injury.
