Tokheim ProGauge now provides a complete set of environmental and wetstock management solutions. We offer a variety of systems – from entry-level probes, to innovative consoles, right through to head-office wetstock management packages. Our wetstock solutions ensure you comply with local legislation, allow you to manage fuel throughout your network, track inventory & delivery information, and ultimately increase your profits. And by choosing Tokheim you know that you will have the local support of the world’s leading fuel retail specialists.

Main features

Event recording up to 32 Gb removable microSD card (only for MAGLINK family).
Safe and easy programming through set up software.
Visualization of the following parameters:
1. product level in mm
2. real volume and compensated at 15 °C in litres
3. interface measure in mm (water detection)
4. product mean temperature
5. volume of empty portion of tank in litres (Ullage)
6. alarm signals, unit of measure.
Tank comparison table and memorization in non volatile memory of the 400 points mm/litres conversion table.
Several standard communication already integrated: Gilbarco, Tokheim, Dresser Wayne, Retalix, Orpak, DOMS compliance.
Leak detection, automatic reconciliation, deliveries, trends.

Technical characteristics

Power Supply 230 Vac – Real Time Clock.
GSM/GPRS, Radio wireless, LAN communication (options).

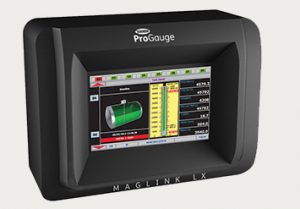

MagLink LX

Manages up to 32 tanks

Color resistive touch-screen TFT 7” display
Manages up to 32 tanks
Web access WI-FI connection (option)
IFSF compliance (option)
Tank strapping table stored in NV RAM up to 500 points
Inches/Gallons option (option)

Technical characteristics

Microprocessor CPU: Cortex ARM A8 @ 600Mhz
Memory: 256 MB DDR2
Storage: 512 MB NAND Flash
GSM/GPRS, Radio wireless (coming soon)
No. 04 low power programmable relays
No. 06 digital/analog inputs
No. 1 RS232 – No. 1 RS485 serial ports
Ports: Ethernet / USB / Can-bus
AUX 3.5 mm jack output, to connect an external speaker
Active or passive integrated Intrinsically safe barriers
Synthetic resin enclosure IP40 protection
Dimensions 265x185x85 mm

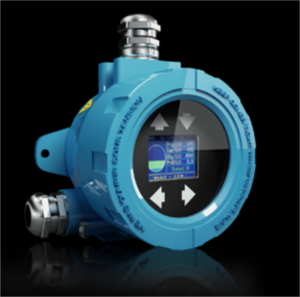

Digimon

DIGIMON 16 T ATEX

Manages up to 16 tanks

Graphical colour TFT 2,7” display
No. 4 capacitive function keys for menu management
No. 1 RS232 – No. 2 RS485 serial ports
No. 4 SPDT programmable relais 250 Vac 1A
No. 4 digital/analog inputs
Circular explosion proof enclosure IP68 protection (max. depth 1 m. for an hour).

Power supply 9-30 Vdc and internal battery with measure on request through a magnet when power loss

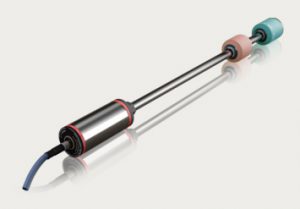

Magnetostrictive XMT Probe

Magnetostrictive I.S. probes XMT SI 485

Intrinsically safe version

Stainless Steel Enclosure Ø 50 mm IP68
(submersible up to 1,2 m per 24 hours).
In 2” riser installation.
7/8″ circular connector with standard cable length 2 m.
Ø 9 mm, hydrocarbon resistant in according ENI specification.
Power supply: 12 VDC.
RS485 serial port.
I.S. circuits to wire to an intrinsically safe barrier active (BRA-SI) or passive (BRA-SIP).

Calculation of data relating to:
- Product level in 0,01 mm
- Interface level in 0,01 of mm. (water presence detection)
- Product mean temperature up to max. 5 integrated digital sensors.
Standard measuring accuracy: +/- 0,5 mm.
Standard resolution: +/- 0,01 mm.
Temperature accuracy range -20 +70 °C: +/- 0,2 °C.
Temperature resolution: ± 0,0625 °C.

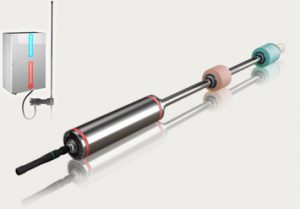

Wireless XMT-RF Probe

Wireless I.S. XMT-RF Probes

Intrinsically safe version battery operated

Wireless transmission to the RF receiver
up to 2 Km. line of sight.
RF repeater for difficult environmental application.
Wake up on radio function.
Power up 500 mW adjustable.
RF signal measurement and display.

Calculation of data relating to:
- Product level in 0,01 mm
- Interface level in 0,01 of mm. (water presence detection)
- Product mean temperature up to max. 5 integrated digital sensors.
Standard measuring accuracy: +/- 0,5 mm.
Standard resolution: +/- 0,01 mm.
Temperature accuracy range -20 +70 °C: +/- 0,2 °C.
Temperature resolution: ± 0,0625 °C.

A flexible range of probes

Tokheim ProGauge offers service station customers a flexible range of probes. The intrinsically safe probes are manufactured in rigid stainless steel to offer a durable, long-lasting and quality solution. Utilising magnetostrictive technology they are highly accurate and are available in a range of sizes (500mm – 5500 mm). What’s more, these probes are suitable for all fuel types including LPG and AdBlue®.

Wireless probe options

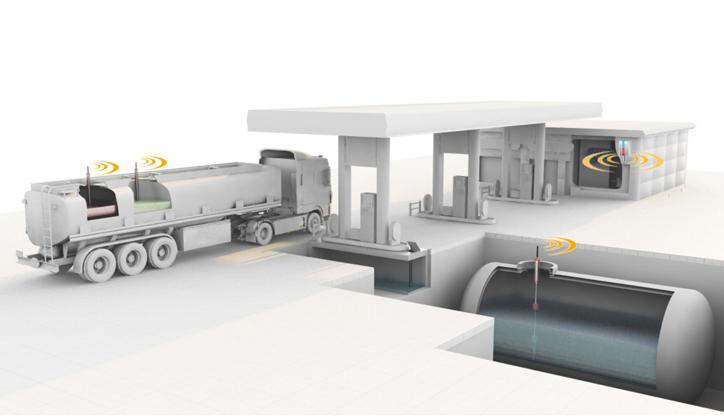

A suite of wireless probes is available as a solution where hard-wiring is not an option. Our latest wireless probes use innovative technology for improved reliability and reduced interference. A dedicated bandwith for metering and telemetry is better suited to the service station environment. The easy installation of the wireless probes and antennas eliminates the need to dig up a site to install wiring.

Maglink consoles

When it comes to choosing a console Tokheim ProGauge has a wide variety of options to select from. Available from 2 to 32 tanks our Maglink consoles offer flexible configurations for use in variety of fuelling set ups, both wired and wireless. A web based and easy to follow user interface quickly enables the operator to access a variety of simplified menus. Multiple POS interfaces are supported including a Magdirect option offering a direct interface to the probes.

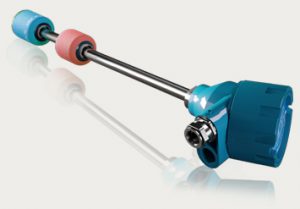

ATEX approved hybrids

Not all service stations require a console to connect to their probes. Our ATEX approved XMT hybrid probe/console offers an effective solution to managing wetstock. Enclosed in a rigid and robust stainless steel shaft this product can be used with all fuel types including LPG and AdBlue®. Remote configuration and off-site diagnostics ensure you get the most from your data.

Quality manufacturing, proven certifications

Tokheim has a long-standing tradition of manufacturing high quality solutions – Tokheim ProGauge products are no different. All our wetstock products are meticulously designed, tested and manufactured to the highest standards. Our manufacturing centres are certified to the world-renowned ISO 9001:2008 standard.

Production quality assurance notification issued by CESI
EMC/CE compliance
Certificate of conformity issued by PRIMA RICERCA laboratory
OIML Metrological certificate of conformity issued by CMI (Czech Metrology Institute)
EC-TYPE examination certificate related to several devices and the integrated system issued by CESI, INERIS, CEC.

Global support and expertise

We know that getting the most out of your wetstock systems requires ongoing support. With more than 25 years experience in tank level gauging we have direct, local service and support personnel in our Tokheim divisions around the world. Additionally, our tank level gauges and probes integrate directly with a variety of Tokheim products such as Fuel POS and we offer a complete wetstock monitoring through our partners Fairbanks. We will be there with you every step of the way to ensure you get the most out of the products you choose from us.
