Specific Kit for the manual static weighing of axles.

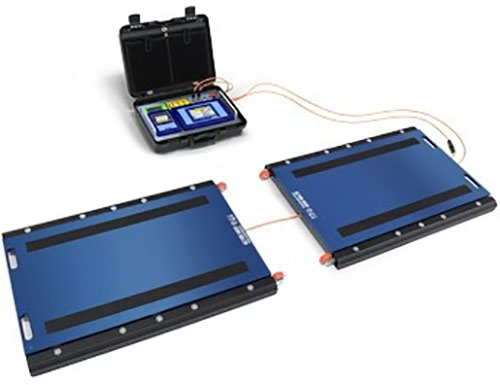

It is composed by two portable wheel weighing platforms WWS series and by the touch screen weight indicator 3590ETKR series, with integrated printer. The user interface is clear, simple and intuitive and displays in real time the weight of the axle, the total weight, the tare and the identification code of the vehicle.
The ticket reports all the weight data, in order to facilitate registration and traceability.

The WWS mobile weighing platforms are used in all applications in which it is necessary to quickly and simply weigh very heavy devices with various resting points, such as automobiles, tractors, carts, airplanes, trucks, tankers, containers, etc.

These are particularly suitable for creating mobile weighing stations: thanks to their reduced weight and the ease in moving and placing them, in a few minutes it’s possible to create a weighing station on any type of flat surface.

Various models of the WWS platforms are available:
WWSB – mm 300×400, WWSC – mm 400×500, WWSE – mm 450×700, WWSD – mm 500×900

Main technical features:

• Accuracy of the platform: 0.03%.
• Low profile: only 50mm high.
• Structure in Ergal 55, for guaranteeing the lightness as well as sturdiness and long duration in time.
• IP68 stainless steel load cells.
• Extremely easy and reliable connection of the scale to the weight indicator.
• Very easy to maneuver.
• Fitted with 10m cable and connector for connection to weight indicator.

Wide range of connectable indicators, functioning with rechargeable battery, guaranteeing
an optimal use also without any mains power supply or in areas without power supply sources.

CHARACTERISTICS OF THE PLATFORMS

• Sturdy structure, made in special aluminium, which guarantees lightness and makes them suitable also for harsh working conditions.
• Cable with quick connector, platform side.
• 10 m cable for connecting the platform to the indicator, complete with connectors.
• IP68 stainless steel load cells.
• Hermetic junction box with IP68 protection degree.
• Special vulcanised nonslip rubber applied under the platform for good grip on all surfaces.
• Very simple and reliable connection between platforms and weight indicator.
• IP68 protection, with IP68 connectors and PUR cables as standard.
• Wheels for the transport and the positioning (only for “WWSEKxx” kit)
• WWS platforms are patented with the number 1.342.302.

TECHNICAL FEATURES OF THE INDICATOR IN THE CASE

• ABS transport case, with housing for the indicator and space for extra accessories.

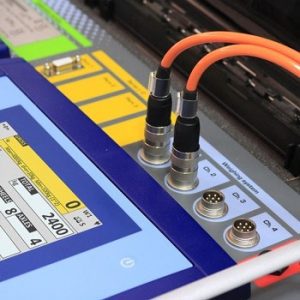

• Touch screen weight indicator complete with printer, connectors for platforms.
• Backlit touch screen display (lxh=120x90mm). Specific layout for axle weighing.
• Multilingual software.
• Available touch screen keyboards: QWERTY, AZERTY or QWERTZ.
• Dimensions: 325x460x170mm. Weight: circa 5kg.

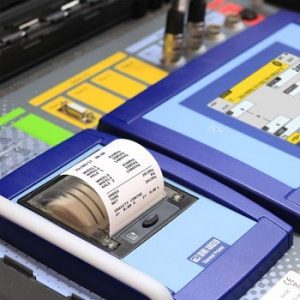

• Attached thermal printer as standard.
• Real time clock and permanent data storage.
• Built-in rechargeable battery (10-hour minimum operating time).

For further technical information, please refer to the data sheet of the indicator 3590ETKR.

FUNCTION MODES

• Manual static wheel/axle totalisation.
• Printing of axle total weight.
• Weighing with predetermined tare.
• Database of 500 customers.
• Simple printout.
• Multiple Printing.
• Last printout copy.
